Unictron Technologies Corporation

内蔵アンテナラインアップ

TELA Chip Antennas

ISM 868MHz,5x3x0.5mm
ISM 915MHz, 5x3x0.5mm
GNSS L1/L2/L5/E6, 5x3x0.5mm
WiFi/BT 2.4GHz, 3.2x1.6x0.5mm
GPS/Glonass/BDS, 3.2x1.6x0.5mm

TELA Chip Antennas

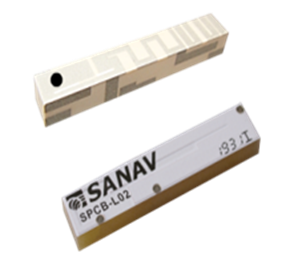

Cellular Chip Antennas

4G LTE Ceramic, 35x5x4mm
4G LTE FR4, 40x8x3mm

Cellular Chip Antennas

PCB/FPC Antennas

FP-GL01, 5G NR/4G LTE, 66.5x20x0.2mm
FP-WE05, WiFi 2.4G/5Ghz, 32.5x31.1x.02mm

PCB/FPC Antennas

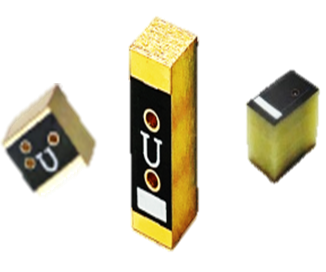

Pillar Chip Antennas

WiFi/BT 2.4GHz – 3x3x3.3mm
WiFi/BT 2.4/5GHz – 3x3x10mm
GPS/Glonass/BDS – 5x3x4mm

Pillar Chip Antennas

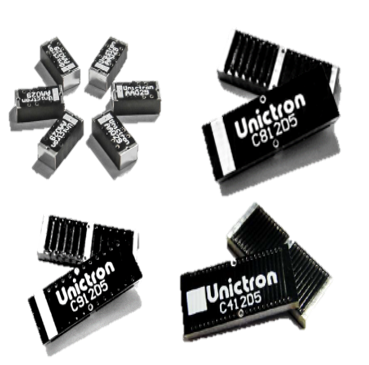

Monopole Chip Antennas

ISM 433MHz – 12x5x1.6mm
ISM 868MHz- 12x4x1.6mm
ISM915MHz – 12x4x1.6mm
WiFi/BT 2.4GHz – 5x2.2x1.6mm

Monopole Chip Antennas

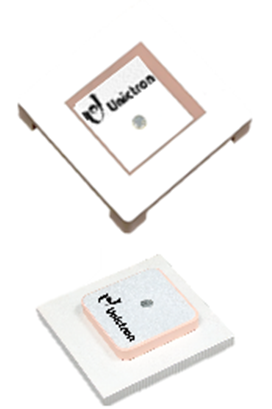

GNSS Patch Antennas

Castleー406
L1( Gaim at zenith 5.6dBic TyP)
L5 ( Gaim at zenith 5.2dBic TyP)
40×40×6mm
Axial Radio <2dB

Stack-408
L1( Gaim at zenith 5.4dBic TyP)
L5 ( Gaim at zenith 5.0dBic TyP)
40×40×8mm
Axial Radio <2dB

GNSS Patch Antennas

GPSアンテナ/GNSS高精度アンテナ

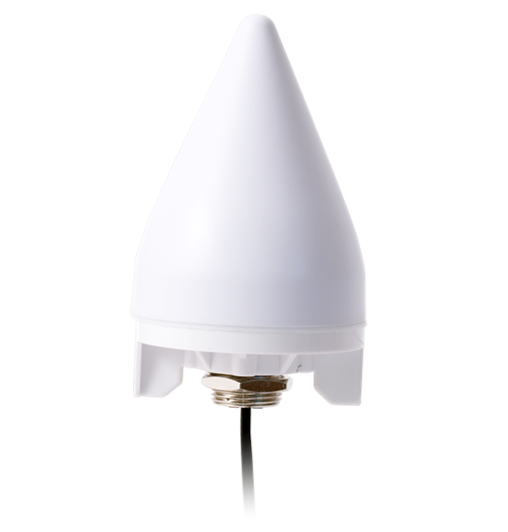

EG-16W-AC

Dia. 60.5mm, H: 78mm
L1,LNA, 35dB Gain
Waterproof Resistant IP67
Wind Resistant 60m/s
Rohs2.0
REACH

EG-16W-AC

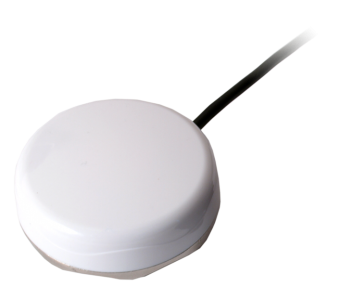

EG-6AW

Dia. 80mm, H: 25.4mm
L1/L2, L1/L5, L1/L6 2 stages LNA, 35dB Gain
IPX7 waterproof resistant Metal bottom case
Magnetic/Adhesive mount PCO< 9mm

EG-6AW

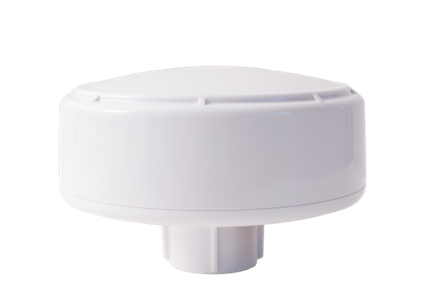

EG-20AW

Dia. 115mm, H: 75.2mm
L1/L2/L5, L1/L2/L5/L6
2 stages LNA, 43dB Gain
IPX7 waterproof
Pole mount
PCO< 5mm

EG-20AW

EG-50W

Dia. 140mm, H: 49mm
L1/L2/L5/L6
2 stages LNA, 43dB Gain
IP67 waterproof
Pole mount
PCO< 5mm

EG-50W

コンボアンテナ

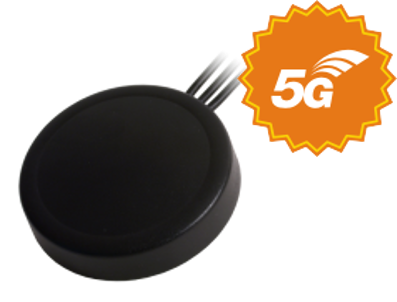

MT-4B

3-in-1,
5G NR/4G LTE/WiFi/GNSS
Φ65x18.3mm (H), Screw Mount

MT-4B

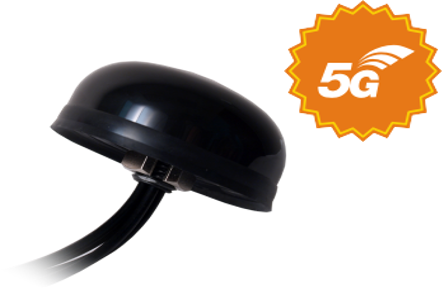

MT-10B

5-in-1,
5G NR/4G LTE/WiFi/GNSS
Φ103x43.5mm (H),
Screw Mount

MT-10B

MT-15B

6-in-1,
5G NR/4G LTE/WiFi/GNSS
170.3x70.3x15.4mm
Adhesive Mount

MT-15B

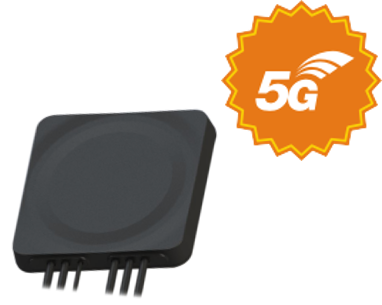

MT-25B

6-in-1 and 8-in-1,
5G NR/4G LTE/WiFi/GNSS
136x136.5x21mm

MT-25B
